Feature:
Compact volume, low power consumption, high sensitivity, easy to operate, install and hide.

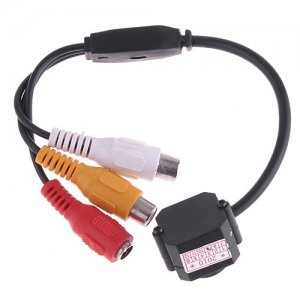

Micro Monochrome/Color Camera has monochrome and color types.
The lens has 2 typical specifications: 3.6mm for monochrome type; 6mm for color type.
It provides audio function, and can be equipped with infrared ray.
It can view the objects without outside light source, it is a full-function collector.
Can work together with other equipment including microcomputer to realize such capabilities as documents filming, photographing, complex video signal PAL(CCR) or NTS(ELA).
The working voltage of this product is DC 9V.
It can be powered on for a long time, but the input voltage can be not exceeded DC+12V, while current can not be exceeded 250MA.
The yellow plug is video output cable, which can be connected with varieties of monitors and TV with video input jack to watch images.
Suitable for car rearview, video meeting, schools, supermarkets, shops, workshops, warehouses, offices, visual telephone, visual E-mail, PC multi-media-toys, games, monitoring, guardianship, anti-burglary, safeguardor other special tasks.
Specifications:
Image sensor: 1/3 , 1/4 color, 1/4 B/W CMOS
System: PAL/CCIR NTSC/EIA
Effective pixels: PAL 628*582; NTSC 510*492
Image area: PAL: 5.78x4.19mm; NTSC: 4.69x3.45
Resolution: 380 TV lines
Scanning frequency: PAL/CCIR 50Hz; NTSC/EIA 60Hz
Video output level: 1Vpp, 75惟
Lowest illuminance: 0.2-3 LUX
S/N ratio: 40dB
White balance: Auto
Power source: 9V DC
Power consumption: 200MW
Cable length: 20cm
Item size: 2.1 * 2.1 * 2cm
Item weight: 30g
Package size: 6.8 * 5.8 * 4.6cm
Package weight: 42g
Package including:
1 * Mini Monochrome/Color Camera
1 * Manual
