Features:
Infra-red LEDs for night-time vision, Effective night vision range: 15m.
380 TV lines clear picture display.
Weather-proof design (Alloyed shell) for outdoor usage.
4-channel real-time wireless receiver.
Min. 100m transmission distance without block.
Antenna can be changed by yourself.
Built-in microphone for audio monitoring.
Easy installation and usage.
Note: Monitors Not included.
Specifications:
Camera:
Imaging Sensor: CMOS
CMOS Total Pixels: 628582 (PAL); 510492 (NTSC)
Horizontal Resolution: 380 TV Lines
View Angle: 55
Night Vision Range: 15m
Minimum Illumination: 5.0 Lux/F1.2 & 0 Lux (IR ON)
Transmission Power: 80mW
Power Supply: DC 5V 1000mA
Consumption Current: 80mA & 200mA (IR ON)
Color: Silver
Weight: 190g
Dimensions (DxH): 57mm*67mm (Alloyed shell)
Receiver:
Receiving Sensitivity: 85dBm
Antenna Port: 50ohm SMA
Power Supply: DC 5V 1000mA
Vided Output level: 1Vp-p @ 75ohm
Audio Output level: 1Vp-p @ 600ohm
Color: Silver
Weight: 400g
Dimensions (WxDxH): 210mm*80mm*45mm
Item:
Transmission Frequency: FM
Antenna Type: Camera: Omni; Receiver: Directional
Unobstructed Effective Range: 100m (Without Block)
Package weight: 1910g

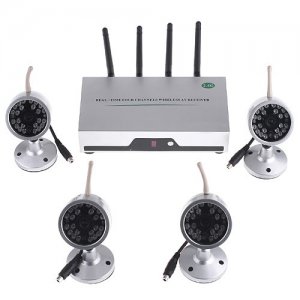

Item Includes:
1 x 4CH Wireless Receiver
4 x IR Security Cameras
4 x Antennas
5 x Adapters (100-240V)
4 x A/V Cable
1 x Remote Control
1 x User Manual
